Wire Size Calculator

AWG Wire Size Calculator

Instantly determine the correct American Wire Gauge for your circuit. Enter your current, voltage, distance, and material to get a precise recommendation with full safety analysis.

Circuit Parameters

Current (Amps)

⚠ Enter a valid current (0.1 – 10,000 A)

Voltage

⚠ Enter a valid voltage (1 – 100,000 V)

Wire Length

⚠ Enter a valid length (1 – 10,000 ft)

Material Type

Max Voltage Drop

⚠ Enter 0.5% – 20%

Phase Type

Calculation Results

Recommended AWG Size

—

⚡

Voltage Drop

—

Resistance

—

🔌

Safe Current Capacity

—

📏

Wire Diameter

—

⬛

Cross-sectional Area

—

🔩

Material Used

—

AWG Reference Chart

Standard copper wire specifications per NEC guidelines

AWG	Diameter (mm)	Area (mm²)	Max Current (Cu)	Max Current (Al)	Resistance (Ω/1000ft)	Usage

Wire Size Calculator: What to Know About Its Functionality

Picking the wrong wire gauge is one of the most critical mistakes possible in any electrical wiring project. If you are working on a circuit, installing a long cable run, or dealing with an industrial power system, you will have to learn how to properly choose a wire gauge according to American Wire Gauge (AWG) standards. For detailed information on wire gauges, please check out our article “American Wire Gauge: AWG Wire Size Guide.” Use the AWG Wire Size Calculator for free online!

What Is the Wire Size Calculator?

The Wire Size Calculator is a completely free and online calculator designed to help electricians, engineers, hobbyists, and students to determine the right size of wire needed for their electrical circuits. In order not to calculate wire sizes manually using some mathematical equations, it is sufficient just to enter the required data and receive instant responses from this program.

Tip: According to the NEC, the maximum allowable voltage drop for branch circuits is 3%, while total drop for feeders and branch circuits is 5%.

Tip: The NEC recommends a maximum voltage drop of 3% for branch circuits and 5% total (feeder + branch). The calculator flags these thresholds automatically.

How to Use the Wire Size Calculator: Step-by-Step

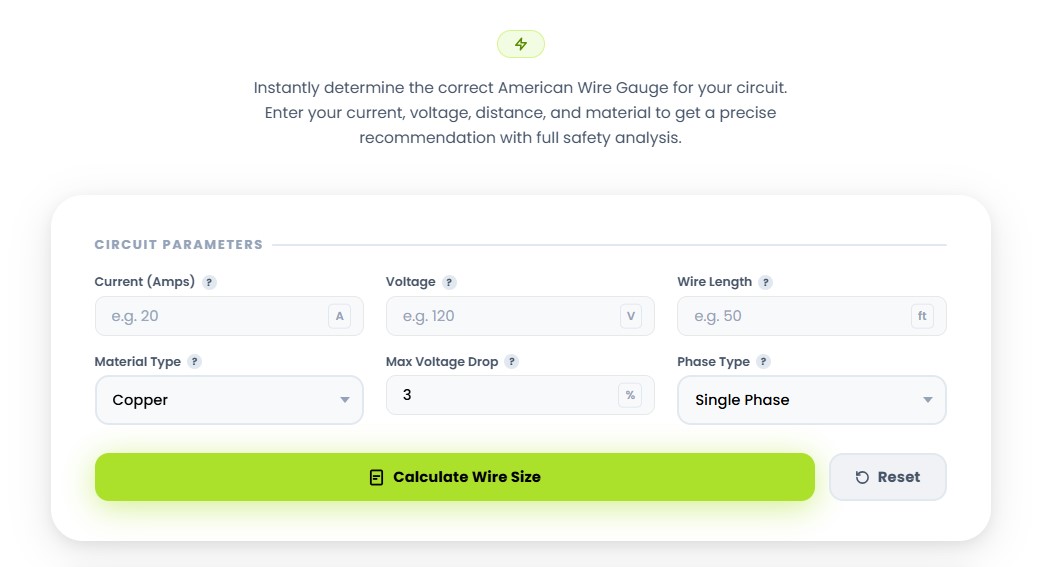

Step 1: Input Your Circuit Parameters

First of all, open the calculator and fill in the following six parameters:
Current (Amps) – Total current flowing through the circuit. It should be stated on a device or breaker nameplate.
Voltage – System voltage (for instance, 120 volts, 240 volts, 480 volts).
Length/Distance – One way distance in feet between the power source and load. The calculator calculates double length for another line.
Wire Material – Pick either Copper (industry standard) or Aluminum (cheaper, but more resistance material).
Maximum Allowable Voltage Drop (%) – Input your own limit. The default value is 3% (the optimal option according to the NEC).
Phase Type – Choose either Single-Phase (used in residential) or Three-Phase systems (commercial and industrial applications).

Step 2: Press "Calculate Wire Size" Button

Now press the Calculate Wire Size button. This calculator uses the circular mili formula [CM = ρ x K x I x L / VD] and confirms the obtained result using National Electrical Code (NEC) ampacity charts to find the minimum wire size.

The output consists of seven values which are everything you need to know regarding the operation of your circuit:

Recommended AWG Size – The lowest AWG size you can utilize with your inputs.
Estimated Voltage Drop – The amount of voltage drops in volts and percentage.
Resistance – The total resistance of the wire runs in ohms.
Safe Current Capacity (Ampacity) – The largest capacity of the selected wire.
Diameter (mm) – For conduits sizing and connector selection.
Area (mm²) – For standard metric sizing.
Material – In order to ensure that the result is copper or aluminum wires.

Furthermore, there is a color-coded status bar showing the result – “Optimal” (≤3%), “Acceptable” (≤5%) or “High Drop”.

Key Features of the Tool

AWG Reference Table – An integrated chart featuring wire size AWG 4/0 to AWG 20, including diameter, cross-sectional area, ampacity for copper and aluminum wires, and resistivity per 1,000 feet. The optimal AWG is auto-calculated.
Copy Result Button – All results are copyable by pressing one button.
Help Tooltips – Each field has an icon providing instructions for filling out.
Data Validation – Errors are shown if something is incorrect with the input in different colors.
Mobile-Friendly Interface – No installation or login required for use on any device.

Who Uses This Wire Calculator?

It is applicable for multiple audiences, from professional electricians designing a circuit prior to installation, to engineers calculating the sizes of feeders and branch circuits for their construction project. Moreover, it may be used for home applications such as garage subpanel and EV charging circuit installations. This tool will be especially helpful if your circuit length exceeds 50 feet.

Conclusion

The AWG Wire Size Calculator makes it impossible to make mistakes in determining the required size of the wire. It uses the circular mils voltage drop method and National Electric Code ampacity values to calculate the result instantly. Read our guide to learn more about the American Wire Gauge System and properties of wires at CalcVersa.

“For official wiring standards, refer to the NEC 2023 — National Electrical Code. For workplace electrical safety requirements, see OSHA Electrical Safety Standards.”
