Voltage Drop Calculator: How to Calculate Voltage Drop Like a Pro
Regardless of whether you’re wiring a domestic house as an electrician, designing commercial power circuits as an engineer, or upgrading a breaker panel as a do-it-yourself enthusiast, calculating voltage drop is arguably one of the most important abilities you could ever have. Fail to apply the rules correctly and risk tripping the circuit breaker, overheating the cable, experiencing a drop in light intensity, or having a device operate incorrectly.
This is precisely why we created our Voltage Drop Calculator – an advanced tool that performs all the necessary calculations, including determining voltage drop, suggesting the minimum wire size, and providing maximum distance.
In this article, you will learn how to use the voltage drop calculator, find out what its parameters mean, and see some common questions and answers about voltage drops.
What Is a Voltage Drop Calculator?
The voltage drop calculator is an electronic device used by engineers to calculate the quantity of voltage that will drop when electric currents flow through a conducting material for a specified distance. Each conductor has a certain level of resistance, which leads to a reduction in voltage from the source to the load.
The standard formula used is:
VD = (2 × K × I × D) / CM
- VD = Voltage Drop (in volts)
- K = Resistivity constant (12.9 for Copper, 21.2 for Aluminium)
- I = Current at the end of the cable run (amps)
- D = One-way distance of the cable run (feet)
- CM = Circular mil area of the conductor
It becomes very laborious to do this for each circuit individually. A voltage drop calculator does this calculation for you automatically within seconds, allowing you to calculate the voltage drop in volts, percentage of the drop, the appropriate wire gauge, maximum possible distance, estimated power loss, and cable efficiency all together in one shot.
According to NEC codes, for branch circuits, the voltage drop should be kept at or below 3%, whereas in case of feeder and branch circuits combined, the voltage drop should not be higher than 5%.
How to Use the Voltage Drop Calculator
Using our tool is straightforward. Here’s a step-by-step walkthrough:
Step 1 - Select Your Calculation Type
At the top of the Input Parameters tab card, select what calculation do you need to perform:
Voltage Drop – You have the wire size and its length, but you need to calculate the voltage drop.
Maximum Distance for a Circuit – You have the wire size, but you need to know how long your circuit can be at certain voltage drop.
Minimum Conductor Size – You have the distance and the load, but you need to determine minimum wire size
Step 2 - Fill In the System Parameters
Set the environmental and system context for your circuit (explained in detail in the next section).
Step 3 - Enter Your Input Parameters
Provide the specific numerical values: system voltage, maximum allowed voltage drop percentage, load current in amps, and cable run length (if applicable).
Step 4 - Click Calculate
Hit the Calculate button. Results appear instantly in the results panel below, showing:
- Voltage Drop (V)
- Voltage Drop Percentage (%)
- End Voltage (V)
- Recommended Conductor Size
- Circuit Distance
- Cable Efficiency (%)
- Power Loss (W)
- Safety Status: Safe, Warning, or Exceeds Limit
Step 5 - Export Your Results
Use the Copy, Print, or Download buttons to save or share your results for documentation or client reports.

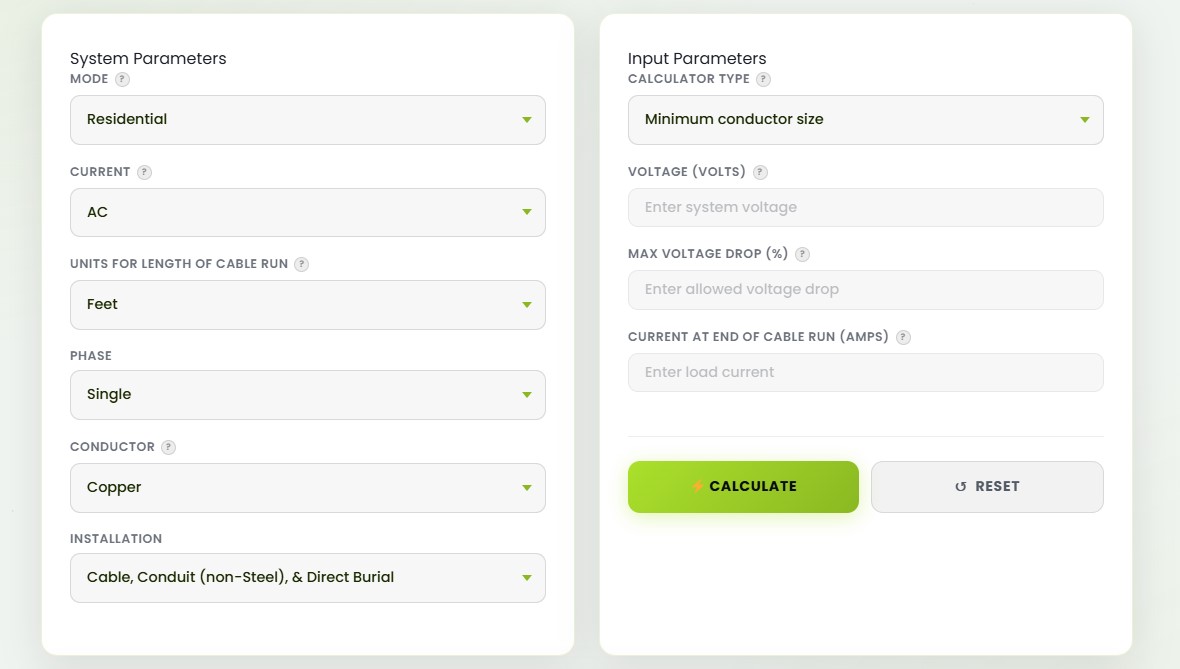

System Parameters vs. Input Parameters - What's the Difference?
Many users wonder why the calculator is split into two separate cards. Here’s the logic:
System Parameters
They are what determine the context of your electrical circuit; they don’t vary on a job site or project from beginning to end. This is your “setup” information.
| Parameter | What It Means |
|---|
| Mode | Residential or Commercial (60°C / 75°C / 90°C) — affects conductor ampacity ratings |
| Current Type | AC (Alternating Current) or DC (Direct Current) — affects the resistance calculation |
| Units | Whether your cable run is measured in Feet or Meters |
| Phase | Single-phase circuit (standard for most residential/light commercial) |
| Conductor Material | Copper (lower resistance, K=12.9) or Aluminium (higher resistance, K=21.2) |
| Installation Method | Conduit, direct burial, etc. — affects heat dissipation and ampacity |
Input Parameters
This is the actual data used to calculate the values of each circuit you’re evaluating – it varies from circuit to circuit.
| Parameter | What It Means |
|---|
| Calculator Type | What result you want: VD, max distance, or min conductor size |
| Conductor Size | The AWG or kcmil gauge of the wire |
| Voltage | Your system supply voltage (e.g. 120V, 240V, 480V) |
| Max Voltage Drop % | The maximum drop you’ll allow (NEC recommends ≤ 3%) |
| Current at End of Run | The actual load current drawn by the device or panel |
| Cable Run Length | One-way distance from source to load |
Separating these two groups makes it faster to run multiple “what if” scenarios — you change only the input parameters while the system settings remain fixed.
How Do You Calculate Voltage Drop Across a Resistor?
And this is one of the most commonly searched questions in electrical engineering studies – how to determine the voltage drop in a resistor?
For a plain resistor in the DC circuit, there is a direct relationship between its voltage drop and current and resistance values, described by Ohm’s law:
V = I × R
Here, V – voltage drop across the resistor, I – current flowing through it, R – resistor value in ohms.
Example: 5A of current flowing through a 4 ohm resistor results in a voltage drop of 5 × 4 = 20 volts.
But in the case of the cable run (as handled by our calculator), a resistor in this situation is the conductor itself, and its resistance depends on several factors, that’s why there is a special CM formula. The longer and smaller in cross-section is the conductor, the higher is its resistance and hence, voltage drop.
In AC circuits, reactance and power factor might play a role in calculation too, but for residential and commercial single-phase applications, resistive formulas are sufficiently accurate.
Frequently Asked Questions
Final Thoughts
The issue of voltage drop should not be assumed or taken lightly, because even a small voltage drop of 5%-6% could result in either the efficient operation of a motor that starts or fails prematurely or lights that shine brightly rather than being dim and inefficient.
The Voltage Drop Calculator provides you with NEC-approved engineering equations instantly for any project from wiring new construction to diagnosing problems with current circuits or designing an off-grid solar power system.
Ready to calculate your voltage drop? Scroll back up to input your data and receive immediate results – without having to sign up, without needing an Internet connection, all offline.
