Deck Stair Calculator: How to Calculate Steps, Stringers & Rise for Your Deck
Constructing stairs for your deck is considered one of the hardest things that must be done when constructing a deck. Accurate calculations influence the structural strength, safety standards, and the general look of your deck. It would be much easier to construct your deck when you have accurate measurements of the stairs for your deck. Use our deck stairs calculator to calculate the necessary numbers and dimensions.
Why You Need a Deck Stair Calculator
This will help simplify things by ensuring that you have the exact measurements required for your task. After having determined the number of steps you require, you will be in a position to construct your staircase according to the right specifications in terms of stringers and tread placement. IRC 2024 stairway requirements.
PRO TIP For example, a small rise will feel easier to climb when it has a long run, while a tall rise will be easier to climb if it has a short run. However, remember to consult the building code in your area regarding acceptable rise and run values. |

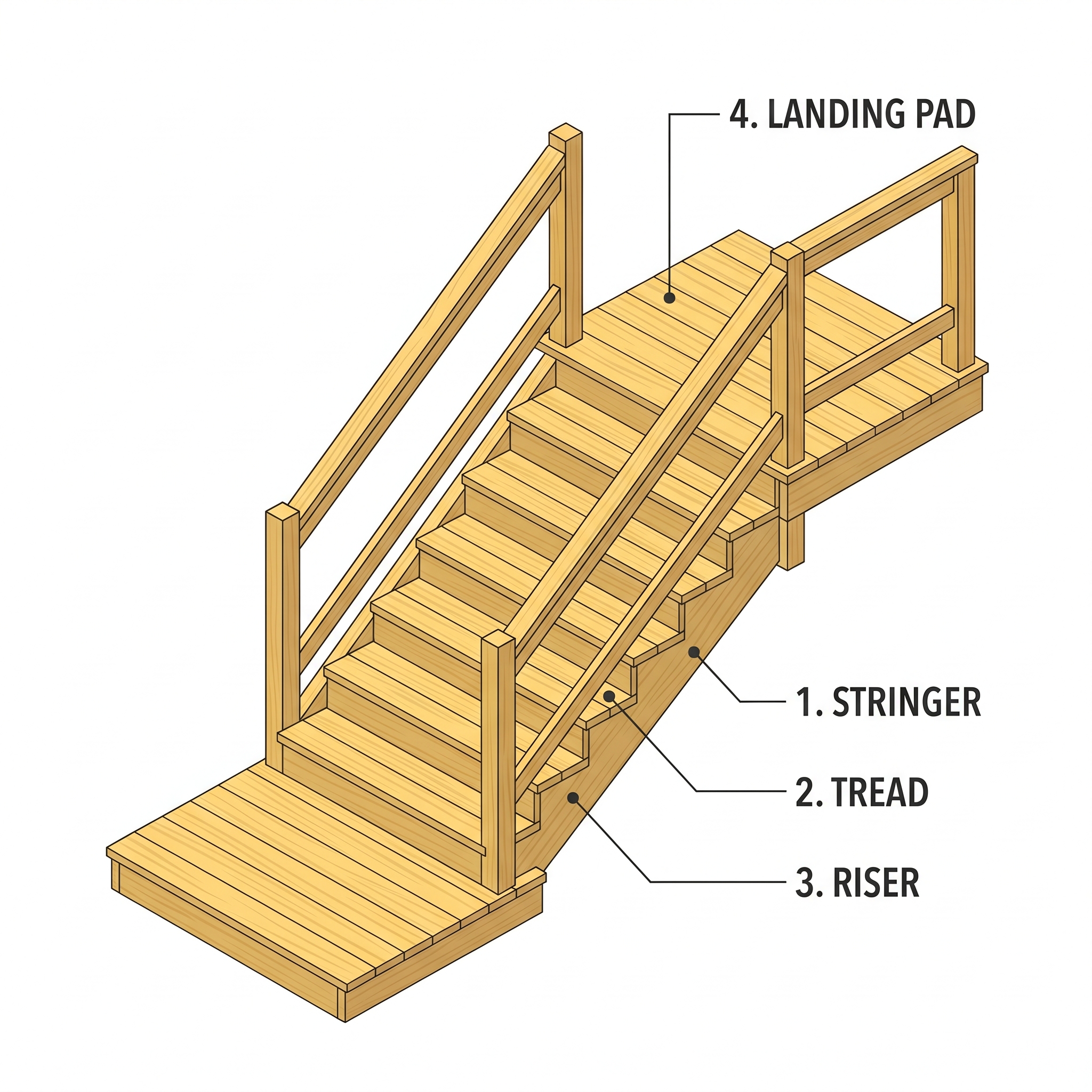

What Are the Parts of a Deck Staircase?
Understanding the vocabulary for each component of a deck staircase will ensure proper measurements and make building much simpler. The four components include the following:
# | Component | Description |
1 | Treads | Planks that form the horizontal footing area for each step, which is the actual walking area. |
2 | Risers | Planks used for the vertical space between the stair steps. |
3 | Stringers | Notched 2×12 planks that act as the supporting frame for both the tread and risers. It is vital to calculate the stringer length accurately. |
4 | Landing Pads | An area on the ground to brush off mud and any other items from your shoes as you descend the steps. |
What Inputs Does the Deck Stair Calculator Need?
In order to get accurate results using the deck steps calculator, follow these simple steps:
5 | Total Rise | Measure the distance from the top of your deck to the ground level on the other side where the stringer ends (total vertical fall). |
6 | Step Run | Measure the depth of each individual stair step (how far each step protrudes). |
7 | Tread Type | Decide whether you will be using a single board for the stairs or multiple boards to build each stair step. |
8 | Stringer Attachment Style | Decide whether you would like to install your stairs using an outside or flush framing method. |
How to Calculate Stair Stringers
A good foundation for sturdy stringers is one of the key aspects of deck construction. Here, we’ll discuss how to determine the stringer length based on the use of Pythagoras’ theorem with respect to the total rise and total run of your staircase.
(Run)² + (Stair Rise)² = [Square Root = Stringer Length] Apply the square root to the sum to get your total stringer length. |
Understanding Total Rise vs. Step Rise
Total rise refers to the full vertical distance between the deck and the ground. Step rise, which is the same as riser height, is derived from total rise by dividing it with the total number of steps.
PRO TIP A short rise will go well with a long run, while a tall rise will suit a short run. It is important to have the right balance of both when installing deck stairs and steps. |

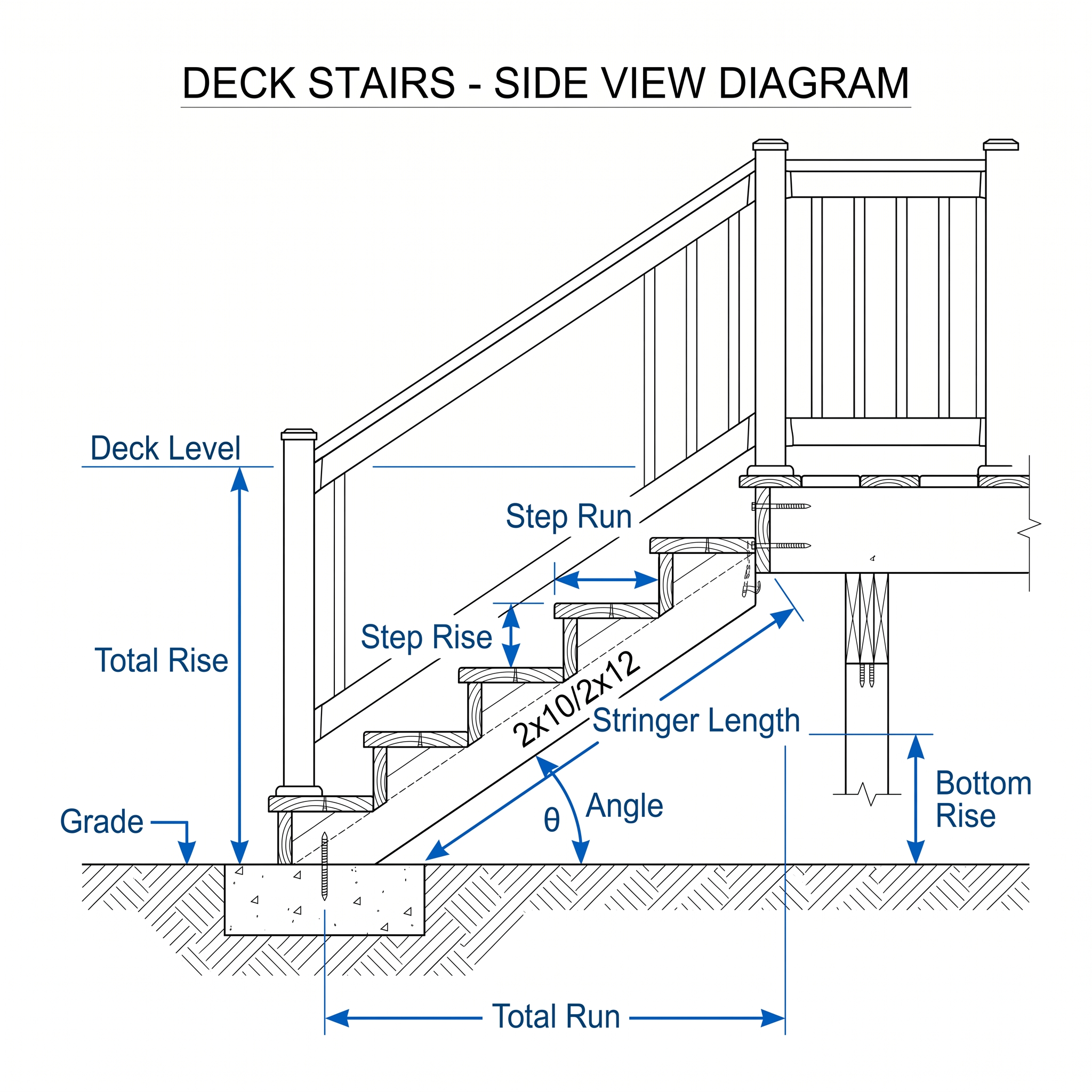

Total Run, Angle & Bottom Rise: Staircase Diagram Terms
In addition to the four important inputs listed above, a full calculation for a deck staircase also provides the following information:
- Total Run : the total horizontal distance from the base of the deck to the bottom step.
- Stringer Length : the length of the stringer board diagonally, based on the equation above.
- Angle : the angle that the stringers make against the ground. The larger the angle, the more vertical and the fewer number of stairs there will be.
- Bottom Rise : the last rise from the landing pad to the first tread. This may be different because of the height of the landing pad.
Building Deck Stairs: Next Steps After Calculating
After obtaining all measurements, such as the total number of steps, the stringer length, the rise, and run of the step, you can begin your construction process. The steps involved include cutting the stringers using a template, installing your landing pad in an even position on compact soil, securing the stringers to the framework of your deck in whichever manner you chose, and installing the treads and risers starting from the bottom.
Since you will have all measurements at hand prior to commencing your work, it will be much easier for you to calculate the amount of lumber needed.
